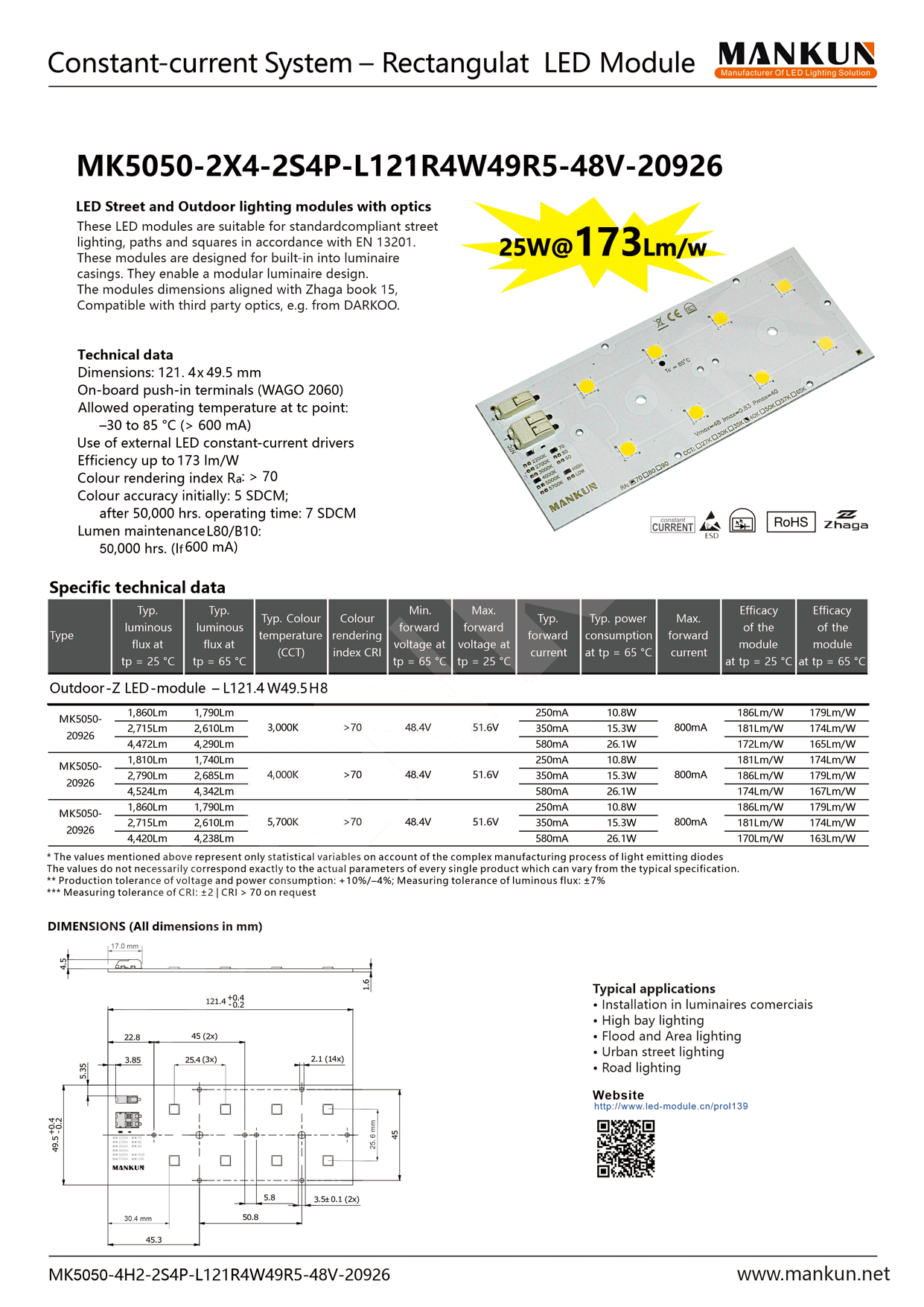

121.4x49.5mm PCB with 2x4 LumiLEDs 5050 LEDs module for Street Lighting 20926

▪ Module power up to 25W
▪ Module efficacy up to 173Lm/W
▪ Module width: 49.5mm
▪ Modul_ Module Input Voltage DC48V
_ Module power up to 25W
_ Module Efficacy 173 lm/W at Irated and tp = 25 °C
_ Module dimension 49.5 x 121.4 x 8 mm
_ LUMILEDS SMD 5050 chip
_ Colour temperatures: 4000K
_ Colour rendering index Ra: >70
_ Colour accuracy initially: 5 SDCM
_ Beam characteristic: 120°
_ Tp rated: 75 °C
_ Tc: 85 °C
_ Irated Current : 600 mA
_ Imax Current : 800 mA
_ Huge performance temperature range from -40 ... +85 °C
_ Integrated NTC for overtemperature protection
_ Push-in terminals for simple and quick wiring(WAGO 2060)
_ Zhaga Book 15 compliant
_ For use with standard 2x2 lenses (e.g. DARKOO Strada 2x2)
_ Installation of the module together with lens in the luminaire bymeans of an M3 screw
_ Long lifetime up to 80,000 hours
_ 5 years guarantee (conditions at www.mankun.net)

Download

• Data sheet
• CAD file
• Test Report
