LED Linear Module - 80 CRI - 4 ft / 1120 mm 128LEDs 40W for Office Lighting 21130

_ Module Input Voltage DC96V
_ Module power up to 40W
_ Module Efficacy 190 lm/W at Irated and tp = 25 °C
_ Module dimension 20 x 1119.5 x 8 mm
_ LUMILEDS SMD 2835 chip
_ Colour temperatures: 2700K,3000K,4000K,5000K,6500K
_ Colour rendering index Ra: >80
_ Colour accuracy initially: 3 SDCM
_ Beam characteristic: 120°
_ Tp rated: 75 °C
_ Tc: 85 °C
_ Irated Current : 420 mA
_ Imax Current : 800 mA
_ Huge performance temperature range from -40 ... +85 °C
_ Integrated NTC for overtemperature protection
_ Push-in terminals for simple and quick wiring(WAGO 2060)
_ Zhaga Book 7 compliant
_ Simple installation via clips or screws
_ Long lifetime up to 80,000 hours
_ 5 years guarantee (conditions at www.mankun.net)

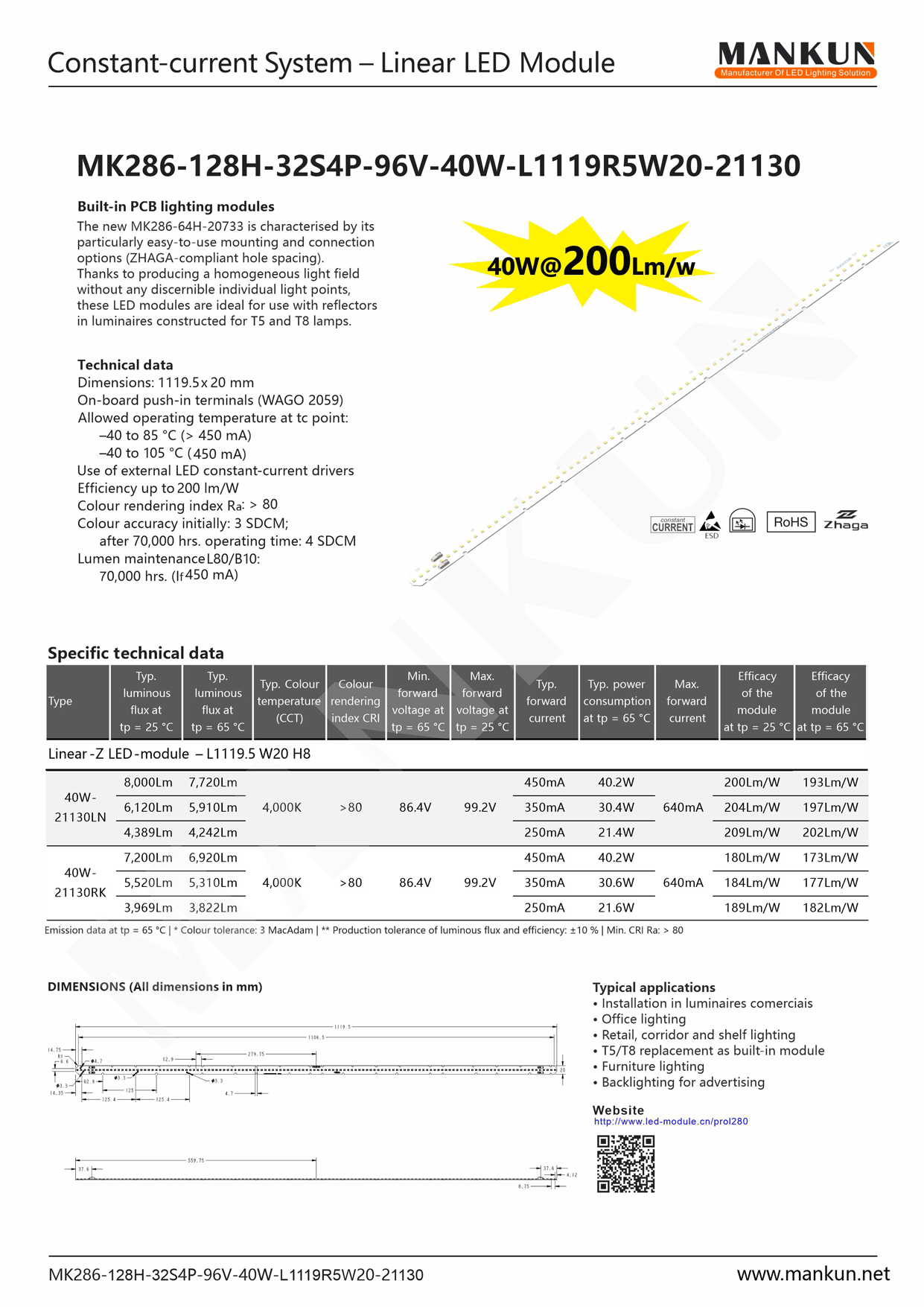

Download
