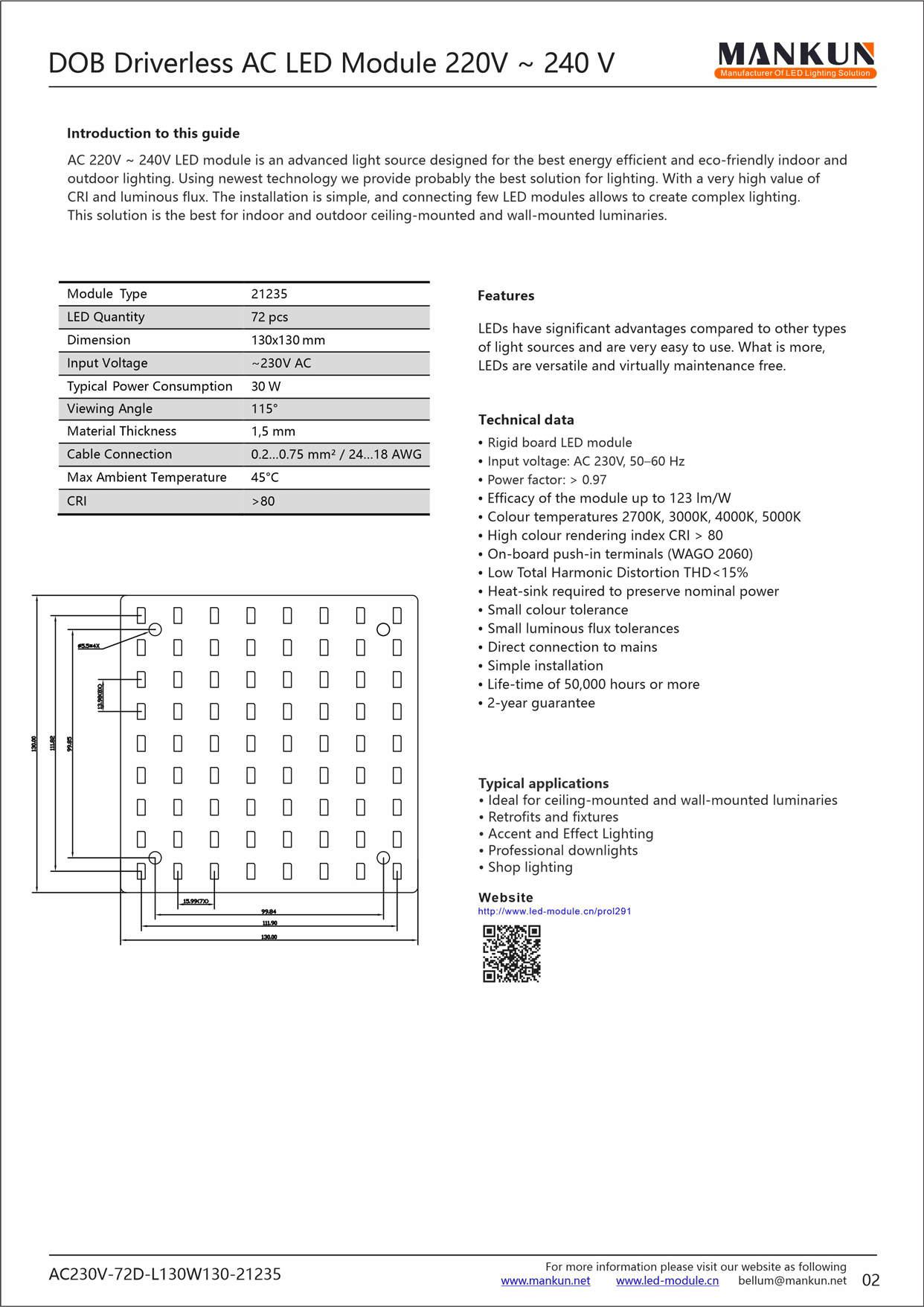

DOB Driverless AC230V LED Module PCB design Assembly 30W with led 123Lm/w for ceiling light
DOB LED Module
Technical data
• Rigid board LED module
• Input voltage: AC 230V, 50¨C60 Hz
• Power factor: > 0.97
• Efficacy of the module up to 123 lm/W
• Colour temperatures 2700K, 3000K, 4000K, 5000K
• High colour rendering index CRI > 80
• On-board push-in terminals (WAGO 2060)
• Low Total Harmonic Distortion THD<15%
• Heat-sink required to preserve nominal power
• Small colour tolerance
• Small luminous flux tolerances
• Direct connection to mains
• Dimmable
• Simple installation
• Life-time of 50,000 hours or more
• 2-year guarantee
• Rigid board LED module
• Input voltage: AC 230V, 50¨C60 Hz
• Power factor: > 0.97
• Efficacy of the module up to 123 lm/W
• Colour temperatures 2700K, 3000K, 4000K, 5000K
• High colour rendering index CRI > 80
• On-board push-in terminals (WAGO 2060)
• Low Total Harmonic Distortion THD<15%
• Heat-sink required to preserve nominal power
• Small colour tolerance
• Small luminous flux tolerances
• Direct connection to mains
• Dimmable
• Simple installation
• Life-time of 50,000 hours or more
• 2-year guarantee
Product Description
